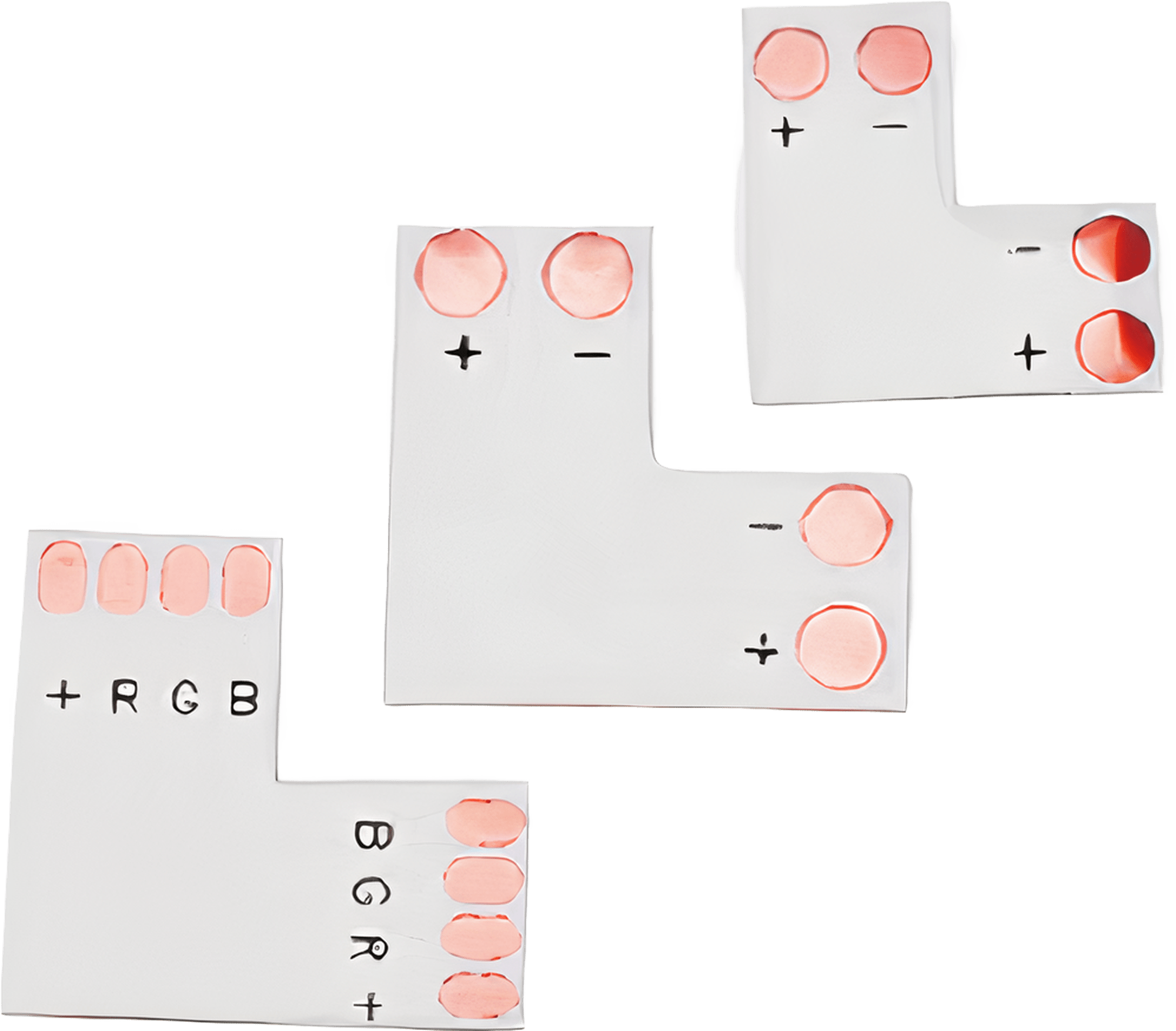

Solderless L-Shape LED Corner Connectors: The Professional Solution for Perfect Corners

Our Solderless L-Shape LED Corner Connectors are an essential accessory for any professional or DIY LED strip light installation. These connectors are specifically designed to help you navigate sharp 90-degree corners with ease, creating a clean, seamless line of light without ever having to bend or twist your LED strips. Bending an LED strip at a sharp angle can damage the delicate circuits and LEDs, leading to failed sections and an unprofessional finish. The Solderless L-Shape LED Corner Connectors completely eliminate this risk, providing a secure and reliable connection that maintains proper polarity and ensures your lighting looks flawless from every angle.

Why You Need a Solderless L-Shape LED Corner Connector

For any installation that involves corners—such as under-cabinet lighting, display case outlines, or architectural cove lighting—achieving a clean turn is critical. The Solderless L-Shape LED Corner Connector offers numerous advantages over other methods:

• Prevents Strip Damage: The primary benefit is protecting your investment. Forcibly bending an LED strip can break the solder joints on the strip itself, causing sections to flicker or fail entirely. These connectors provide a safe bridge around the corner.
• Maintains Light Consistency: A bent strip often results in unevenly spaced LEDs around the corner, creating a noticeable dark spot or a cluster of light. Our connectors ensure the light path remains uniform and professional.
• Incredibly Easy to Use: Forget the hassle and potential danger of soldering. The simple clamp-down design allows you to create a secure connection in seconds with no special tools required.
• Ensures Secure Connections: The sharp copper pins inside the connector pierce the LED strip’s contact pads, creating a strong, reliable electrical connection that won’t come loose over time.

How to Use Your Solderless L-Shape LED Corner Connector

Installing a Solderless L-Shape LED Corner Connector is a straightforward process that anyone can master.

1. Prepare the Strip: Cut your LED strip light carefully along the designated cut line.
2. Expose Contacts: If your strip has a silicone (IP65) coating, you will need to gently peel back about half an inch of the coating to expose the copper contact pads. For non-waterproof strips, this step is not needed.
3. Open the Connector: Open the white clasp on both sides of the L-shaped connector.
4. Insert the Strip: Gently slide the end of each LED strip into one side of the open connector. Make sure the copper pads on the strip are aligned directly underneath the metal pins inside the connector.
5. Check Polarity: This is the most crucial step. Ensure the polarity markings (+, R, G, B, etc.) on both strips align correctly. For example, the “+” on one strip must connect to the “+” on the other strip through the connector.
6. Close and Secure: Firmly snap both clasps shut. You should feel a distinct “click” as the pins pierce the contact pads, locking the strips in place.
7. Test the Connection: Power on your LED strips to confirm that the connection is secure and all colors are working correctly before final installation.

For a visual guide on using similar connectors, you can watch this helpful tutorial on YouTube.

Applications for L-Shape Connectors

These connectors are indispensable for a wide range of projects. Pair them with our 2835 Single Color LED Strips for flawless under-cabinet lighting, or use the 4-pin version with our 5050 RGB Strips to create stunning, multi-colored cove lighting that wraps perfectly around a room. They are also ideal for retail displays, sign-making, and architectural accent lighting.

Frequently Asked Questions (FAQs)

Q: Will this connector work with my waterproof LED strips? A: Yes, but you must first remove the waterproof silicone coating from the connection area to expose the copper pads. The connector itself is not waterproof, so the connection point should be sealed with silicone sealant or heat-shrink tubing if it will be exposed to moisture.

Q: What is the difference between a 2-pin, 4-pin, and 5-pin connector? A: The number of pins corresponds to the type of LED strip:

• 2-Pin: For single-color (monochromatic) strips.
• 4-Pin: For standard RGB (Red, Green, Blue) strips.
• 5-Pin: For RGBW (RGB + White) or RGBCCT strips.
