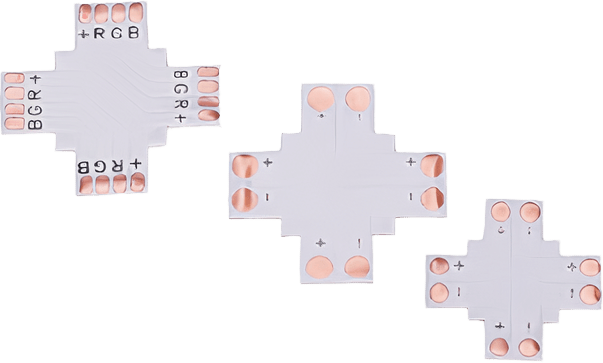

Solderless X-Shape LED Splitter Connectors: For Ultimate Creative Control

Unlock the full potential of your creative lighting projects with the Solderless X-Shape LED Splitter Connector. This highly specialized accessory is the ultimate tool for creating intricate, symmetrical, and grid-based lighting designs that are impossible with standard connectors. The Solderless X-Shape LED Splitter Connector functions as a central four-way hub, allowing a single LED strip to branch out in three additional directions at perfect 90-degree angles. It provides a clean, professional, and incredibly simple way to build complex layouts without a single drop of solder, making it perfect for both ambitious DIYers and professional installers.

Designing with the Solderless X-Shape LED Splitter Connector

While our L-Shape Connectors handle corners and our T-Shape Connectors create branches, the Solderless X-Shape LED Splitter Connector is designed for symmetry and intersections.

• Perfect Grid Creation: This is the ideal component for backlighting ceiling coffers, feature walls, or creating large-scale illuminated grids. Each connector acts as a perfect intersection point.
• Symmetrical Designs: Create perfectly symmetrical crosses for decorative accents, retail displays, or themed lighting installations.
• Simplifies Complex Wiring: Imagine trying to wire four strips together at a central point. It would require a cluster of wires and complicated soldering. This single component replaces all of that, resulting in a much cleaner and more reliable installation.
• Maintains Polarity: The internal circuitry is designed to carry the correct voltage polarity to all four connected strips, ensuring your entire grid lights up uniformly and responds to controls correctly.

Installation Guide for X-Shape Connectors

Creating a secure 4-way connection is simple.

1. Cut Your Strips: Measure and cut your four LED strip segments to length, ensuring you cut only on the designated copper cut lines.
2. Expose Contacts: For any strips with a waterproof silicone coating, you must carefully peel back the coating to expose the copper contact pads on the ends of all four strips.
3. Open the Connector: Open the white clasps on all four sides of the X-shaped connector.
4. Insert the Strips: Gently slide the end of each of the four strips into an open port. Ensure the copper pads on the strips are aligned to make contact with the metal pins inside the connector.
5. EXTREMELY IMPORTANT – Check Polarity: Before closing the clasps, meticulously check that the polarity markings (+, G, R, B) are aligned consistently across all four strips. For example, the “+” pad on all four strips must be oriented on the same corresponding track within the connector. Incorrect alignment will cause malfunction.
6. Secure the Connection: Firmly snap all four clasps shut until you feel them lock.
7. Test Your Grid: Before final installation, connect your grid to its power source to confirm all segments light up correctly. For large grids, you may need multiple power injection points to avoid voltage drop. You can learn more about this in guides like this one on powering long LED strip runs.

Applications for X-Shape Connectors

The creative possibilities are immense. Use the Solderless X-Shape LED Splitter Connector with our high-quality LED Strip Lights to build:

• Illuminated tic-tac-toe boards or other game-themed displays.
• Complex backlighting for multi-panel art installations.
• Grid-style lighting behind translucent panels for a futuristic effect.
• Illuminated crosses for churches or event décor.

Frequently Asked Questions (FAQs)

Q: Can I power my entire grid from just one strip connected to the X-Connector? A: For smaller designs, yes. However, for large grids with many feet of LED strips, you will likely experience voltage drop (dimming at the far ends). In these cases, it’s best practice to run separate power wires to different points in the grid (“power injection”) to ensure even brightness throughout.

Q: Are these connectors reusable? A: Yes. You can carefully open the clasps to remove or reposition the LED strips. However, be gentle, as repeated use can wear down the clasp mechanism.
